Next-level responsiveness icon

Next-level responsiveness

The Agoura™ amp modeling methodology sets a new benchmark for authentic amplifier sound and responsiveness.

Instant inspiration icon

Instant inspiration

The 8" hi-res touchscreen and other refinements combine to offer the most ergonomic, intuitive, and inspiring user interface available.

Total control icon

Total control

Leverage Wi-Fi, Bluetooth®, the Showcase™ automation/playback engine, and more for unprecedented control.

Stay informed

Your Sound – Center Stage

Helix® Stadium Family amp and effects processors establish a new benchmark—just as the original Helix processor did. Leveraging powerful DSP and the entirely new Agoura modeling methodology, they deliver extraordinary sound and responsiveness to playing dynamics, a sophisticated yet intuitive user interface, and unparalleled control capabilities. Plus, legacy Helix/HX® presets are compatible with Helix Stadium processors. The Helix Stadium Family comprises the Helix Stadium XL Floor and Helix Stadium Floor processors, the Expand D10 digital I/O expansion unit, the EX2™ expression pedal/toe switch, and the Helix Stadium Backpack. Let Helix Stadium products help you realize your musical vision.

  • Entirely new Agoura modeling methodology
  • Hype control morphs between ultra-authentic and idealized amp sounds
  • Proxy amp, cab, and effect cloud-based cloning engine
  • Preset compatibility with Helix/HX products
  • High-resolution touch screen
  • High-contrast OLED scribble strips (XL only)
  • Focus View with contextual parameter control
  • Preset Audition audio clips and information
  • Showcase automation and playback engine
  • Highly precise expression pedal with toe switch (XL only)
  • Wi-Fi and Bluetooth® control
  • Free Helix Stadium editing software

Agoura Models

Helix Stadium XL Floor and Helix Stadium Floor amp and effects processors will launch with 22 brand new Agoura amp models—including 16 new guitar amp models and 6 new bass amp models. But that’s only half the story! In this video, you’ll discover how many amp channels were modeled. The music bed features the Agoura ‘Brit Plexi’ model.

Touch Screen

Helix Stadium XL Floor and Helix Stadium Floor amp and effects processors have high-resolution 8-inch touch screens. Find out how you can quickly access and edit your presets, songs, and more. The music bed features the Agoura ‘Brit Plexi’ model.

The Search Field

Helix Stadium XL Floor and Helix Stadium Floor amp and effects processors allow you to search through the model list and preset list using a search field. Find out how this feature can make searching through your models and presets so much faster. The music bed features the Agoura ‘US Princess 76’ model.

Touchscreen User Interface

Helix Stadium Floor and Helix Stadium XL Floor amp and effects processors include new 3D Graphics for each model. In this video, we take a look at some of them and see how you can keep them in view while editing your presets.

Focus view lens

Focus View provides additional context and tools for the selected amp or effect. In this video, we take a look at how it could completely change the way you edit your tones.

Signal path + new icons

We've added new signal path icons to the Helix Stadium Floor and Helix Stadium XL Floor amp and effects processors. Intuitive signal paths help you create complex signal chains and quickly identify which effects are in your presets. Tone at the speed of thought.

Multiple inputs and outputs even allow you to process up to four instruments at once.

The music bed features the new Agoura ‘EV Panama Red’ model.

Differences between Stadium Floor and XL

Helix Stadium Family amp and effects processors establish a new benchmark—just as the original Helix processor did. Leveraging powerful DSP and the entirely new Agoura modeling methodology, they deliver extraordinary sound and responsiveness to playing dynamics, a sophisticated yet intuitive user interface, and unparalleled control capabilities. Plus, legacy Helix/HX presets are compatible with Helix Stadium processors.

In this video, Paul Hindmarsh compares the flagship Helix Stadium XL Floor with the more streamlined Helix Stadium Floor.

Favorites

Take streamlining your workflow to a new level with the Favorites menu on the Helix Stadium XL Floor and Helix Stadium Floor amp and effects processors.

In this video, learn how to quickly save and recall your most-used amps, cabs, and effects with your custom settings, organize them into folders, and more.

GUITAR TRACKS RECORDED WITH HELIX STADIUM

Helix Stadium Floor, Helix Stadium XL Floor, EX2, and Expand D10 on a hazy stage
Close-up of Helix Stadium logo and control knob
Back of Helix Stadium Floor showing inputs and outputs
Top down look at Heilx Stadium XL Floor
Close-up of Helix Stadium logo and control knobs
Close-up of back of Helix Stadium Floor showing inputs and outputs
Helix Stadium Floor, Helix Stadium XL Floor, EX2, and Expand D10 on a hazy stage
Close-up of Helix Stadium logo and control knob
Back of Helix Stadium Floor showing inputs and outputs
Top down look at Heilx Stadium XL Floor
Close-up of Helix Stadium logo and control knobs
Close-up of back of Helix Stadium Floor showing inputs and outputs
Helix Stadium XL Floor image

Helix Stadium XL Floor

Helix Stadium XL Floor, the most comprehensive and integrated guitar processor ever created by Line 6. The extensive hardware package features a high-resolution 8" touch screen, 12 high-contrast OLED scribble strips, and a precise expression pedal with toe switch. It offers extensive connectivity, including various analog and digital audio inputs and outputs.

  • Precise expression pedal with toe switch
  • 12 OLED Scribble Strips
  • 2 variable impedance instrument inputs, 126+ dB dynamic range
  • XLR mic preamp, 128 dB dynamic range
  • S/PDIF in/out
  • Supports up to 4 effects loops featuring 120+ dB dynamic range
  • Supports up to 4 external expression pedals
  • Supports up to 4 external amp control outs
  • Supports up to 4 drum trigger inputs
  • Nexus™ port for optional Expand D10 unit and future peripherals
  • USB-C, USB-A, and removable 32GB microSD storage
  • Robust internal power supply (IEC)
  • Dual-piece extruded aluminum top chassis with folded steel baseplate
Helix Stadium Floor image

Helix Stadium Floor

Helix Stadium Floor is the most streamlined and scalable guitar processor from Line 6 available today. The unit sports a high-resolution 8" touch screen and offers extensive connectivity, including various analog and digital audio inputs and outputs.

  • 1 variable impedance instrument input, 126+ dB dynamic range
  • XLR mic preamp, 128 dB dynamic range
  • S/PDIF in/out
  • Supports up to 2 effects loops featuring 120+ dB dynamic range
  • Supports up to 2 external expression pedals
  • Supports up to 2 external amp control outs
  • Supports up to 2 drum trigger inputs
  • Nexus port for optional Expand D10 and future peripherals
  • USB-C, USB-A, and removable 32GB microSD storage
  • Robust internal power supply (IEC)
  • Cast aluminum top chassis, cast aluminum sides, and folded steel baseplate
EX2 image

EX2

The sleek and highly versatile EX2™ expression pedal/toe switch gives you precise control of volume, wah, pitch, and other effects and parameters, and its cast-aluminum construction ensures reliable performance gig after gig. The EX2 integrates automatically with Helix® Stadium, HX® Stomp/XL, HX One, POD® Go, and POD Express—just plug it in and play—and independent Pedal/Toe SW and Toe Switch outputs let you connect it using either a single TRS or two TS 1/4" cables. However you configure it, the EX2 provides premium parameter control.

  • Premium expression pedal with assignable toe switch
  • Seamless integration with Helix Stadium products functionally and aesthetically
  • Plug-and-play with Helix Stadium, most HX, and POD Go family products
  • Independent Pedal/Toe SW and Toe Switch outputs provide flexible connectivity
  • Sturdy cast-aluminum chassis and treadle ensure reliable performance
  • Adjustable tension bolt for optimizing response
Expand D10 image

Expand D10

The Expand D10 digital I/O expansion unit greatly increases the flexibility of Helix Stadium processors. Connect Variax® modeling guitars using VDI and Powercab® 112+/212+ active guitar speaker systems using L6 LINK™. It also expands the ways in which Helix Stadium processors may be used with audio interfaces, digital mixers, multi-connector breakout boxes, and other devices via 8-channel optical out.

  • Variax Digital Interface (VDI), L6 LINK, AES/EBU, and 8-channel optical connectivity
  • Connect Variax modeling guitars via VDI
  • Connect Powercab 112+/212+ active guitar speaker systems via L6 LINK
  • Send two channels of AES/EBU digital audio at 44.1kHz or 48kHz
  • Send up to 8 channels of digital audio over TOSLINK optical
  • Connects to Helix Stadium processors with a Cat6 cable via Nexus
Helix backpack image

Helix Stadium backpack

Transport your Helix Stadium amp and effects processor securely and in style with the Helix Stadium Backpack. It combines high-quality, durable materials with a padded, shock-resistant interior to ensure your gear stays safe.

  • Primary compartment, for Helix Stadium Floor or Helix Stadium XL Floor, is water repellant when fully closed
  • Veltex®-lined accessory compartment features dual-sided attachment loops
  • Padded sleeve for laptop storage
  • Hidden compartment for digital tracking device
  • Breathable and ergonomic backpack straps for comfort
  • Reflective Helix logos for added safety
  • Pass-through for battery power pack allows external charging of portable devices

PRICING
U.S. customers can expect to see advertised prices starting at $1799.99 USD for Helix Stadium Floor, $2199.99 USD for Helix Stadium XL Floor, $219.99 USD for Expand D10, $149.99 USD for EX2, and $249.99 USD for the Helix Stadium Backpack. For customers outside the U.S., please contact your local Line 6 retailer for pricing information.

AVAILABILITY
Starting on June 25th, you can reserve your Helix Stadium online and in stores.
Helix Stadium XL Floor will be available Fall 2025, and Helix Stadium Floor in Winter 2025.

Find a certified reseller

Comparison Chart

Get notified about Stadium
Email
SMS

Sign up to automatically create a Line 6 account and add your information to the Line 6 email list to receive offers, promotions, and news updates

By providing your phone number, you agree to receive recurring marketing text messages (e.g. new product info, news, promotional offers, cart reminders.) from Line 6, Guild, Ampeg, Córdoba, and Yamaha, as well as from third parties acting on behalf of those brands. Consent is not a condition to obtain goods or services. Message and data rates may apply. Message frequency varies. Replay STOP to cancel at any time. You also agree to the Terms of Use and Privacy Policy.

Terms of use Privacy policy

Instant inspiration

The high-resolution touch screen, scribble strips (on Helix Stadium XL Floor), and an array of knobs, buttons and footswitches make it easy to build your tones. But it’s new features like the patent pending Hype and Focus View functions that make the experience even faster and more creative, giving you immediate results when dialing in the nuances you’re after.

Turn off Silent Mode to enable sound.

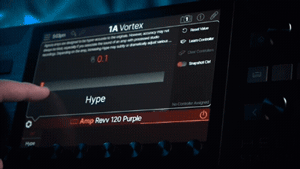

Experience Hype

Here’s a taste of how you’ll work with the Hype parameter to morph between ultra-authentic and idealized amp sounds. Starting with Hype set to Off you can experience Hype at mid (50%) and high (100%) in this demo. This web-based experience is an extremely simplified version of the actual user interface, but we hope you’ll get the idea of what it can do.

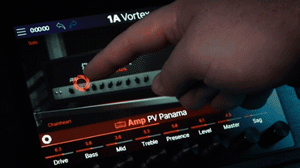

Experience Focus View

Focus View is a dedicated, real-time touch screen function that offers greatly simplified editing options for the selected model. Here’s a taste of how you’ll work with Agoura amp sounds and enjoy tons of versatility when building a tone in Helix Stadium. This web-based experience is an extremely simplified version of the actual user interface, showcasing just five out of thousands of nuanced settings, but we hope you’ll get the idea of what it can do.

Step #1: choose a clip/amp model to start with:

Make sure your sound is turned up

Step #2: Hype it up

Hype enables you to morph between ultra-authentic and idealized sounds using a single control. On Helix Stadium there are ten different variants of Hype for each amp model. This web simulation approximates that by presenting you with three of those options.

Click on the far left, center and far right to change Hype.

Step #2: Bring it into focus (View)

Focus View provides contextual parameter control, centered on descriptive and easy-to-grasp terms, that you can morph in real time just by sliding your finger over the screen.

Depending where your finger lands you’ll end up with any one of several thousand subtle variants. For this web-based simulation you can audition five of them.

Next-level responsiveness

Helix Stadium is best experienced hands-on. Because what makes Helix Stadium exceptional is not only the extraordinary sound of Agoura amplifier models, it’s how they respond to your playing—something you can only experience firsthand. Of course, your playback system is also crucial, so to get the full experience, you’ll want to pair Helix Stadium with a high-quality amplification system. In the meantime, bearing the above in mind, listen to the sound samples provided here to get an idea of what’s in store, and also dive deeper into Agoura modeling.

Turn off Silent Mode to enable sound.

Choose your adventure

Hear Helix Stadium sound samples

Learn about Agoura amp modeling

Listen now

Details

Style
---
Amp model
---
Cab
---
Microphone
---
Effect
---

Discover Agoura

Agoura modeling

Agoura modeling establishes a new benchmark for authentic sound when modeling physical amplifiers—from tube and transformer behavior to dynamic interaction with speakers and cabs—while also greatly increasing the accuracy of how amps respond to your playing.

Discover Agoura

Inter-block communication

Output transformers interact with speakers and the cabinet in which they are installed. Agoura modeling measures cabinet impedance to accurately voice power amps for specific amp and cab combinations.

Interstage impedance

Agoura modeling measures the output impedance of every gain stage in the circuit. Precisely calculating the impedance between gain stages results in more accurate tonal characteristics and enhanced playing feel.

Discover Agoura

Double-precision tone stacks

Double-precision tone stacks provide a more precise way to calculate the frequency response in complex circuits such as guitar amplifier tone stacks, contributing to more realistic responsiveness and feel.

Improved sag and ripple emulation

The Agoura process combines power amp and power supply modeling when calculating sag and ripple, resulting in more realistic behavior. Both Sag and Ripple are adjustable parameters within each amp.

Discover Agoura

Enhaced tube emulation

Agoura tube modeling captures data about current flow at various plate and grid voltages by measuring actual tubes, more accurately calculating tube performance in specific guitar amp circuits.

Power stage modeling

The component values of both the power amp and the power supply are configured within the same DSP block in Agoura, resulting in increased responsiveness to playing dynamics.
