POD HD Pro - RJ45 electronics repair

[Phoenix1350]

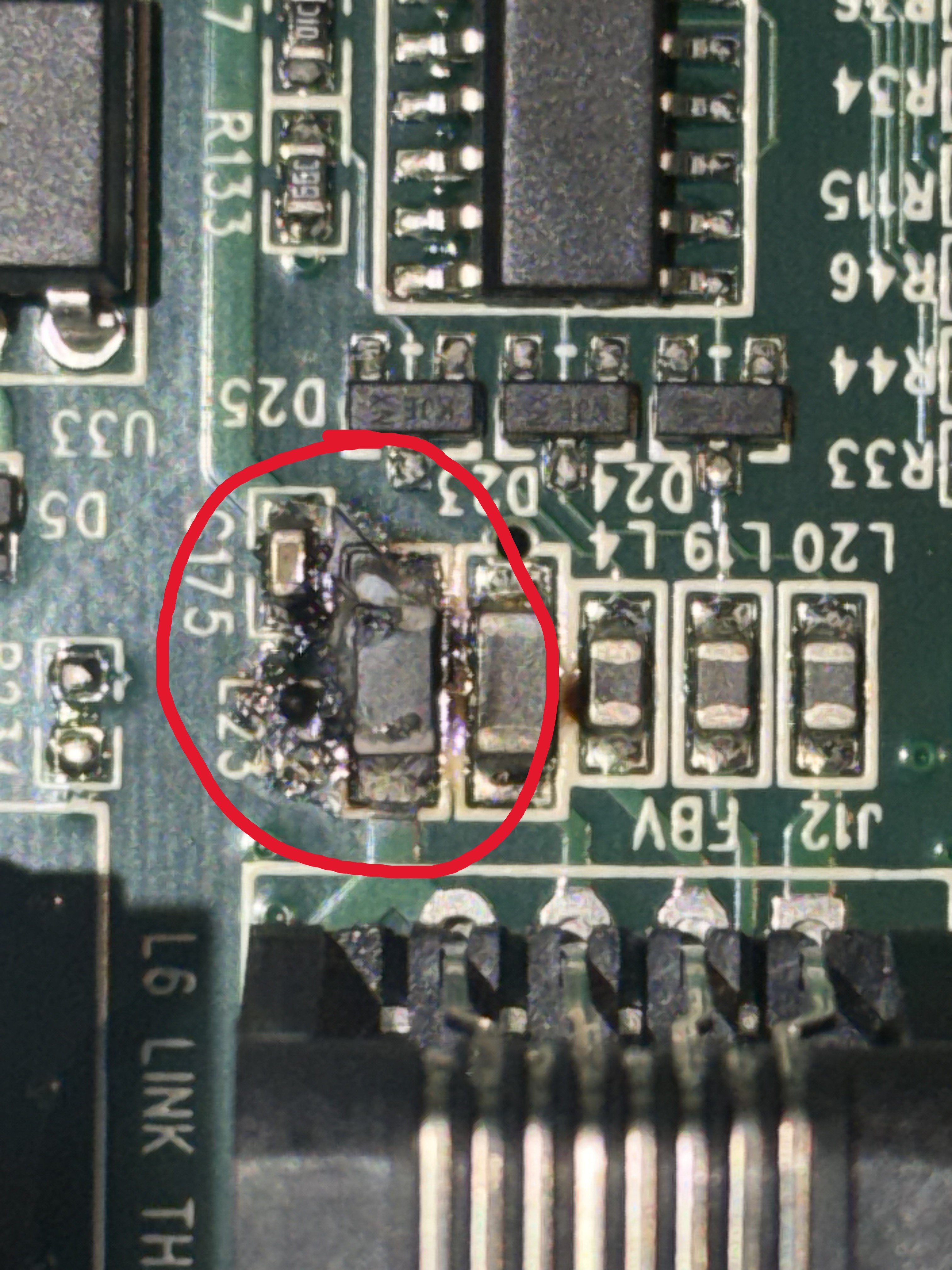

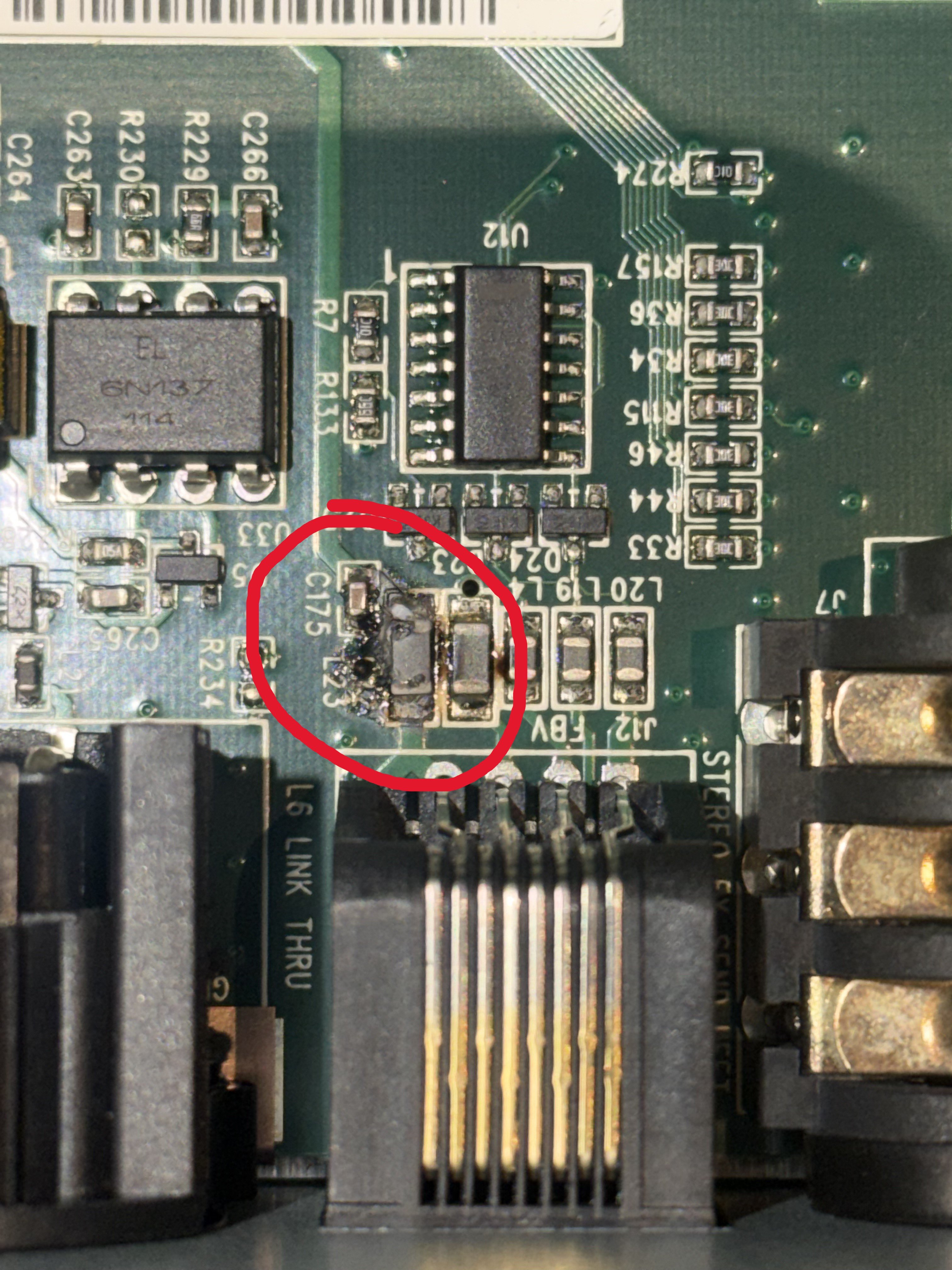

My FBV MkII shortboard stopped working with my Line 6 Pod HD Pro. After testing it with another Pod HD Pro and another shortboard, it was determined the issue was with the Pod. I opened it up to inspect it and noticed what looks like a burnt out electronic (see attached images).

My question is; what is this part(s) (L23/?), it is something I can find a replacement for, and is it an easy repair? I do have a local repair person I can go to, but want to provide him with as much information prior.

[hurghanico]

Out of curiosity trying a google AI search based on your posted image and a few additional questions yielded this:



• The image shows a circuit board with components designated L23 and C175 that appear to be severely damaged or burnt.
• This type of damage is often caused by an electrical short circuit or excessive voltage applied to the component.
• Replacing these damaged surface-mount components typically requires technical soldering skills to restore the board's functionality.





Question: The picture shows part of the PCB of a HD Pro pod. Which burned elements need to be replaced?

Answer:

Based on the markings visible on the picture of the circuit board, the primary elements that are clearly destroyed and must be replaced are:

• L23: This is an SMD inductor (ferrite bead) that has completely charred and cracked apart.
• C175: This is a small surface-mount ceramic capacitor sitting immediately parallel to L23, which has been engulfed in the localized thermal blowout.





Recommended Action Plan



1. Clean the Area: Before desoldering, use high-purity Isopropyl Alcohol (IPA) and a fine antistatic brush to clean away the carbon residue and soot. This is necessary to see if the underlying copper pads or PCB traces are lifted or burned through.
2. Inspect Surrounding Elements: The adjacent ferrite beads/inductors (L19 and L4) and the protection diodes above them (D23, D24, D25) are in close proximity to the blast zone. Check them for physical damage or heat stress.
3. Investigate the Root Cause: Components like L23 and C175 are usually part of the power filtering circuit. They rarely explode on their own; this type of violent blowout is typically caused by a major short circuit down the line or a faulty power adapter/jack sending incorrect voltage into the unit. Replacing them without finding the short may result in the new parts immediately blowing up again.

Would you like help finding the exact component values from the Line 6 schematic, or instructions on how to safely test the board for shorts using a multimeter?





Question: I would you like help finding the exact component values from the Line 6 schematic





Answer:

Because Line 6 has recently released legacy product schematics to the public under their official Line 6 Technical Schematics portal, the exact values for the POD HD Pro Rack can be cross-verified directly.

Looking at the adjacent filtering cluster (L19, L20, L4) and the protection diodes (D23, D24, D25), this area represents a standard power supply rail or input protection filter.

Here are the exact standard component values used in this exact configuration across Line 6 digital PCB power topologies:

Component Value Specifications



Designator	Component Type	Typical Value	Package Size / Footprint
L23	Ferrite Bead (SMD Inductor)	600 Ω @ 100MHz (or 120 Ω high-current, 1.5A–2A)	0805 or 0603 surface-mount
C175	Multilayer Ceramic Capacitor (MLCC)	0.1 μF (100nF), 25V or 50V rated (X7R dielectric)	0603 surface-mount

How to Confirm the Values Safely



1. Cross-Reference with the Unburnt Array:
   Notice that L23 / C175 sit right next to L19, L20, and L4 which match up with the diodes. They form an identical parallel group.
2. Test the Neighboring Inductor:
   If you have a component tester or smart tweezers, desolder the completely intact neighbor, L19. Testing its impedance and DC resistance will tell you the exact match needed to replace L23.
3. Check for Direct Short-Circuits:
   Use a digital multimeter in Continuity / Ohms mode and place your probes on the two empty pads of C175. If your multimeter reads close to 0 $\Omega$, do not solder new parts yet. The main integrated circuit (IC) or buck regulator down the line is shorted out and must be replaced first.
