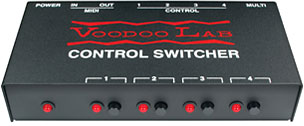

darkspin Posted September 13, 2020 Share Posted September 13, 2020 Bonjour, Je lance une bouteille à la mer ? Suite à ma recherche pour controler les canaux de ma tête Laney Ironheart via le HX effects j'ai finalement décidé d'acheter le "Voodoo Lab control switcher" qui me parait la solution la plus confortable. Pour info je me suis renseigné auprès de Voodoo Lab (échanges de mails) et on m'a bien dit que je ne devrais pas avoir de problèmes pour controler ma tête avec le switcher et le HX Effects. Chose importante : l'entrée footswitch de ma tête d'ampli est un "DIN 5 Pins" mais en aucun cas une entrée midi. laney J'ai donc commencé à connecter tout le matos, et la première étape est ok ! : Le "Voodoo lab" arrive bien à faire switcher les canaux de la tête d'ampli via la sortie MULTI (DIN 5 Pins également) quand j'appuie sur les boutons de devant : voodoo [/img] Mon problème est que je n'arrive pas à envoyer le signal midi du "HX Effects" vers le "Voodoo lab". Dans "Command center" du HX Effects je ne sais pas si il faut que j'utilise MIDI CC ? ou Bank PC ? Il faut que j'utilise "Instant 1-2-3-4-5-6" ou "Footswich 1-2-3-4-5-6" ? Et ensuite comment envoyer le signal ? Midi ch, CC# etc... ? Quel numéros ? J'ai vu dans le manuel du voodoo lab qu'il y des canaux CC# 80-83, 84-87 etc.. mais je n'y pompe rien, de plus il n'y à la le numéro "value". J'en ai vu certains qui utilisaient des "Snapshots" pour faire changer les canaux de leur ampli et je n'arrive pas à comprendre à quoi cela sert vraiment. Bref, j'ai essayé plein de combinaisons mais je n'ai pas réussi à envoyer de signal Midi vers le Voodoo Lab. Pour info, j'ai bouffé plein de vidéos youtube (pas trouvé ma config) ainsi que des recherches google à n'en plus finir mais impossible de trouver la solution (et je ne pige pas grand chose en ce qui concerne le MIDI du HX)... J'ai également lu le manuel du HX et du Voodo Lab mais rien n'y fait. Je ne comprend pas bien les "snapshots" et les "instants". Un énorme merci d'avance si quelqu'un s'y connait au niveau du midi du HX effect et peu m'aider à trouver une solution Ma config et les manuels : - Ampli Laney Ironheart 60 : https://manuals.laney.co.uk/IRT120H_IRT60H_Manual_ML.pdf - Line 6 HX Effects : https://line6.com/data/6/0a020a3d3f355a6a18827952c/application/pdf/HX%20Effects%202.50%20Owners%20Manual%20-%20French%20.pdf - Voodoo Lab control switcher : http://www.voodoolab.com/manuals/control_switcher_v1_manual.pdf La chaine avec les cables midi : 1er cable midi : Sortie midi du HX effect => dans le IN Midi du Voodoo control switcher. 2ème cable midi : Sortie MULTI Voodoo lab entrée (5 pins également) => Sortie de la tête d'ampli DIN 5 pins. Merci d'avance ! Quote Link to comment Share on other sites More sharing options...
rd2rk Posted September 14, 2020 Share Posted September 14, 2020 DISCLAIMER - I don't own either device, VDL or Laney. The following is entirely my take after reading the manuals. First, the 5 pin DIN on the Laney is NOT MIDI. No need for the second MIDI cable. Start by checking the MIDI Channels. By default, the HXFX is on Channel 1 (Global Settings>MIDI/Tap Tempo). The same should be true of the VDL. If not, follow the instructions in the manual to make it so. Get two Insert Cables - 1/4" Male TRS to dual 1/4" Male TS. Plug Insert Cable 1 TRS end into the CHANNEL Jack on the back of the Laney. Plug the two TS plugs into the VLC jacks 1 and 2. Plug Insert Cable 2 TRS end into the Boost/Reverb jack on the Laney. Plug the two TS plugs into the VLC 3 and 4 jacks. Set the Front Panel switches on the Laney as below (from the manual: In order to use any footswitches, set Pre-Boost and Clean switches to ON, and Channel to Lead. You would use CC#s to control each VLC Output separately. You might want to assign two footswitches to control Boost and Reverb, using CC#s 82 and 83 (VLC defaults) (see below). You would use PC#s to control groups of VLC Outputs. You might want to use two PC#s to control the Channel switch, PC#1 (or whatever # you want to use) would have VLC Out 1 ON and 2 OFF, PC#2 would have VLC Out 1 OFF and 2 ON (READ THE VLC MANUAL). This might not matter if the Laney has internal Logic that won't allow both to be ON at once, but the minimalist Laney manual is not clear on that point. In Command Center, Instant Commands (ICs) execute instantly and consecutively (1-6) on Preset Load and Snapshot Change. Stomp Buttons work only when pressed, after the Preset is loaded. So, use ICs to set the Channel (IC1), Reverb (IC2) and Boost (IC3) on Preset Load. When you change Snapshots, these settings will remain the same until you change them. For instance, if the preset loads with the Clean Channel ON in Snapshot 1 (the one that was active when you last saved the Preset) using PC#1, and you want to switch to the Lead Channel on Snapshot 2, Save Snapshot 2 with the IC1 (Channel) set to PC#2. If you change back to Snapshot 1, the Clean Channel will again be active. As to CC VALUES, the VLC manual is not clear on whether the VLC responds to MIDI Standard ON (000) and OFF (127) values. I would avoid using CCs. Instead, set up PCs like this (remember, you can use any PC#s you want): PC#3 = Boost and Reverb OFF PC#4 = Boost OFF Reverb ON PC#5 = Boost ON Reverb OFF PC#6 = Boost as Reverb ON Or any logical combination that makes sense to you. Keep in mind that I don't know which functions are controlled by the Tip and Ring of the TRS jacks plugged into the Laney footswitch jacks. Maybe tip is Boost, maybe it's reverb. Experiment. Have fun! I know, sounds confusing. Welcome to the Wonderful World of MIDI! You probably have questions. Feel free to ask for clarification. The following translation is courtesy (?) of Google Translate. I take no responsibility! AVERTISSEMENT - Je ne possède ni appareil, ni VDL, ni Laney. Ce qui suit est entièrement mon avis après avoir lu les manuels. Tout d'abord, le DIN à 5 broches du Laney n'est PAS MIDI. Pas besoin du deuxième câble MIDI. Commencez par vérifier les canaux MIDI. Par défaut, le HXFX est sur le canal 1 (Paramètres globaux> MIDI / Tap Tempo). La même chose devrait être vraie pour la VDL. Sinon, suivez les instructions du manuel pour y parvenir. Obtenez deux câbles d'insertion - 1/4 "mâle TRS à double 1/4" mâle TS. Branchez le câble d'insertion 1 extrémité TRS dans la prise CHANNEL à l'arrière du Laney. Branchez les deux fiches TS dans les prises VLC 1 et 2. Branchez l'extrémité du câble 2 TRS dans la prise Boost / Reverb du Laney. Branchez les deux fiches TS dans les prises VLC 3 et 4. Réglez les commutateurs du panneau avant sur le Laney comme ci-dessous (à partir du manuel: Pour utiliser des commutateurs au pied, réglez les commutateurs Pre-Boost et Clean sur ON et Channel sur Lead. Vous utiliseriez des CC # pour contrôler chaque sortie VLC séparément. Vous voudrez peut-être affecter deux commutateurs au pied pour contrôler Boost et Reverb, en utilisant les CC # 82 et 83 (valeurs par défaut de VLC) (voir ci-dessous). Vous utiliseriez des PC pour contrôler des groupes de sorties VLC. Vous voudrez peut-être utiliser deux PC # pour contrôler le commutateur de canal, le PC # 1 (ou tout autre # que vous voulez utiliser) aurait VLC Out 1 ON et 2 OFF, PC # 2 aurait VLC Out 1 OFF et 2 ON ( LISEZ LE MANUEL VLC). Cela n'a peut-être pas d'importance si le Laney a une logique interne qui ne permet pas aux deux d'être allumés en même temps, mais le manuel minimaliste de Laney n'est pas clair sur ce point. Dans le centre de commande, les commandes instantanées (IC) s'exécutent instantanément et consécutivement (1-6) sur le chargement de préréglage et le changement d'instantané. Les boutons Stomp ne fonctionnent que lorsqu'ils sont pressés, après le chargement du Preset. Donc, utilisez les CI pour régler le canal (IC1), la réverbération (IC2) et l'amplification (IC3) sur la charge préréglée. Lorsque vous modifiez des instantanés, ces paramètres restent les mêmes jusqu'à ce que vous les modifiiez. Par exemple, si le préréglage se charge avec le canal Clean ON dans l'instantané 1 (celui qui était actif lors de la dernière sauvegarde du préréglage) à l'aide du PC n ° 1, et que vous voulez passer au canal principal sur l'instantané 2, enregistrez l'instantané 2 avec IC1 (Channel) réglé sur PC # 2. Si vous revenez au Snapshot 1, le Clean Channel sera à nouveau actif. En ce qui concerne les VALEURS CC, le manuel du VLC ne précise pas si le VLC répond aux valeurs MIDI Standard ON (000) et OFF (127). J'éviterais d'utiliser les CC. À la place, configurez des PC comme celui-ci (rappelez-vous que vous pouvez utiliser n'importe quel PC que vous voulez): PC # 3 = Boost et Reverb OFF PC # 4 = Boost OFF Reverb ON PC # 5 = Boost ON Reverb OFF PC # 6 = Boost comme Reverb ON Ou toute combinaison logique qui vous semble logique. Gardez à l'esprit que je ne sais pas quelles fonctions sont contrôlées par la pointe et l'anneau des prises TRS branchées sur les prises de la pédale Laney. Peut-être que la pointe est Boost, peut-être que la réverbération. Expérience. S'amuser! Je sais, cela semble déroutant. Bienvenue dans le monde merveilleux du MIDI! Vous avez probablement des questions. N'hésitez pas à demander des éclaircissements. La traduction suivante est une gracieuseté (?) De Google Translate. Je ne prends aucune responsabilité! 1 Quote Link to comment Share on other sites More sharing options...
rd2rk Posted September 14, 2020 Share Posted September 14, 2020 I almost forgot - in Global Settings>MIDI/TapTempo - set "MIDI PC TX" to OFF. That prevents HXFX from sending it's default PC# when loading presets. VERY IMPORTANT! J'ai presque oublié - dans Paramètres globaux> MIDI / TapTempo - régler "MIDI PC TX" sur OFF. Cela empêche HXFX d'envoyer son numéro de PC par défaut lors du chargement des préréglages. TRÈS IMPORTANT! Quote Link to comment Share on other sites More sharing options...
darkspin Posted September 14, 2020 Author Share Posted September 14, 2020 Hello rd2rk and thank you very much for these explanations. Just a piece of information as I wrote above the only footswitch input of the laney is a Din 5 pins. (see the diagrams) The person from Voodoo Lab that I emailed told me that a 5-pin midi cable was needed to go from laney to Voodoo Lab. Do you think your explanations are ok if we don't use 1/4 jacks? Thank you so much ! :-) Quote Link to comment Share on other sites More sharing options...
darkspin Posted September 14, 2020 Author Share Posted September 14, 2020 Its good ! I managed to find the solution: 8) (Thanks again to rd2rk for his help ;-) ) Hoping that this can be useful for someone. 1: On the Laney amp head you have to activate the Boost, The Clean, the Lead and adjust the reverb you want with the knob. 2: First of all, I recommend resetting the "Voodoo Lab control Switcher": Hold buttons 2 and 3 then connect the power supply. Buttons 2 and 3 flash. Release them then press 1 then 2 then 3 and finally 4. Disconnect the power supply and reconnect it. 3: To activate Bank PC + CC of the "Voodoo Lab control Switcher": Hold button 3 then connect the power supply. Button 3 flashes. Release it then press buttons 1 and 2. Disconnect the power supply and reconnect it. 4: Press the desired Line 6 switch (example 01A), then go to "Menu" then "Command center" Select "Footswitch 1" then select CC Togl. Then select midi channel 1, then CC # 80. Leave Dimval at 0 and Litval at 127. Save, then exit with the Line 6 swicth "Edit / Exit Mode". Turn off the LEDs 1,2,3,4 of the "Voodoo Lab control Switcher" and press the switch 01A of the HX Effects, it works! We can repeat the same things on 4 different toogle and control the LEDs 1-2-3-4 of the "Voodoo Lab control Switcher": Midi 1, CC # 80 Midi 1, CC # 81 Noon 1, CC # 82 Noon 1, CC # 83 5: To finish, activate or deactivate the toogles of the preset to control the leds of the "Voodoo Lab control Switcher" and you can order: Reverb, clean, lead and boost (since the rhythm channel is the main channel. Here is if it can be useful for someone! In any case, it's really exellent, my amp is now midified and the sound is exellent. It is possible to combine each channel with any effect, it's great! Traduction en Français : C'est bon ! J'ai réussi à trouver la solution :8) En espérant que cela pourras servir à quelqu'un. 1 : Sur la tête d'ampli Laney il faut activer le Boost, Le Clean, le Lead et doser la reverb que l'on souhaite avec le potard. 2 : Tout d'abord je conseille de réinitialiser le "Voodoo Lab control Switcher" : Maintenir les boutons 2 et 3 puis brancher l'alimentation. Les boutons 2 et 3 clignotent. Les relacher puis appuyer sur 1 puis 2 puis 3 et enfin 4. Débrancher l'alimentation et la rebrancher. 3 : Pour activer Bank PC + CC du "Voodoo Lab control Switcher" : Maintenir le bouton 3 puis brancher l'alimentation. Le bouton 3 clignote. Le relacher puis appuyer sur le bouton 1 et 2. Débrancher l'alimentation et la rebrancher. 4 : Appuyer sur le switch voulu du Line 6 (exemple 01A), puis aller dans "Menu" puis "Command center" Selectionner "Footswitch 1" puis selectionner CC Togl. Ensuite selectionner midi channel 1, puis CC# 80. Laisser Dimval à 0 et Litval à 127. Sauvegarder, puis sortir avec le swicth du Line 6 "Mode Edit/Exit". Eteindre les leds 1,2,3,4 du "Voodoo Lab control Switcher" et appuyer sur le le switch 01A du HX Effects, ça marche ! On peut répéter la même choses sur 4 toogle différents et controler les Leds 1-2-3-4 du "Voodoo Lab control Switcher" : Midi 1, CC# 80 Midi 1, CC# 81 Midi 1, CC# 82 Midi 1, CC# 83 5 : Pour finir, activer ou désactiver les toogles du préset pour controler les leds du "Voodoo Lab control Switcher" et vous pourrez commander : La reverb, le clean, le lead et le boost (puisque le canal rythmiques est le canal principal. Voila si ça peut servir à quelq'un ! En tout cas, c'est vraiment exellent, mon ampli est maintenant midifié et le son est exellent. Il est possible de combiner chaque canal avec n'importe quel effet, c'est génial ! Quote Link to comment Share on other sites More sharing options...
rd2rk Posted September 14, 2020 Share Posted September 14, 2020 You have a different model than the manual I found, so I'd need to find the manual for your exact model to be sure, but if everything else is the same, it should work. The DIN connector is just the way they wired it for their footswitch. The 1/4" jacks provided on the model I looked at are simply an alternative for those who don't want to use their pedal. If VDL can provide you an adapter cable, everything should work fine. The instructions related to the HXFX should still apply. 1 Quote Link to comment Share on other sites More sharing options...
rd2rk Posted September 14, 2020 Share Posted September 14, 2020 You posted as I was typing. Glad to see that you worked it out. Rock On! 1 Quote Link to comment Share on other sites More sharing options...
Vrepsylon Posted April 14, 2021 Share Posted April 14, 2021 Hello Darkspin, I have the same configuration as you. Can you send me the wiring diagram you made between line 6, the control switcher and the Laney head. In fact I have a doubt about the midi In / Out wiring between line 6 and the control switcher. Thank you Quote Link to comment Share on other sites More sharing options...
orbitus Posted April 24, 2022 Share Posted April 24, 2022 Hello! I want to buy a Laney GHR100 if it works with this Woodoo Labal. Q: Is Gain, EQ settings can be controlled, saved? Quote Link to comment Share on other sites More sharing options...
rd2rk Posted April 24, 2022 Share Posted April 24, 2022 I have no idea what a Woodoo Labal is. As to the VDL Control Switcher, the GHR100 is a single channel amp, there's nothing to switch. You mean can you save the gain/eq settings on the GHR100? No, it's not a digital amp and has no preset memories. 1 Quote Link to comment Share on other sites More sharing options...
